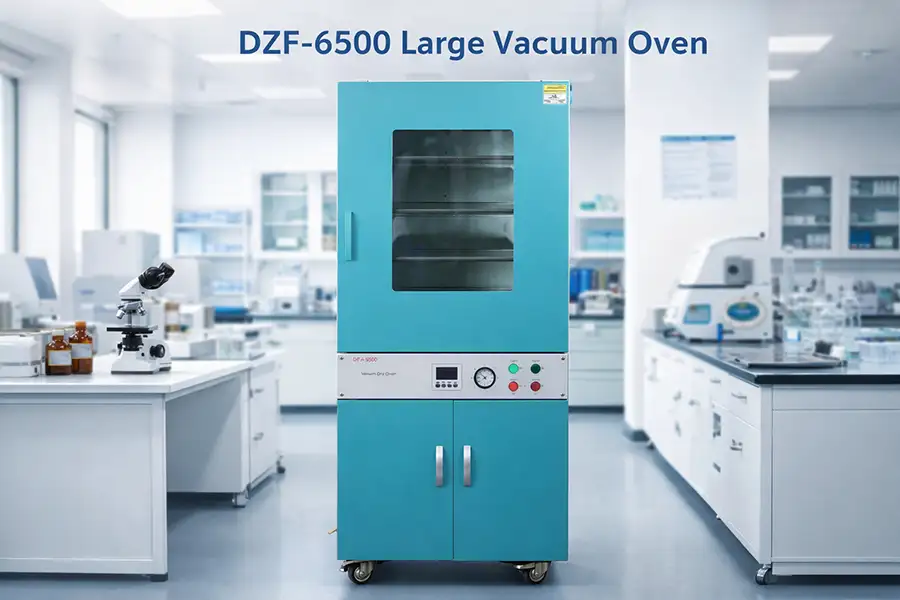

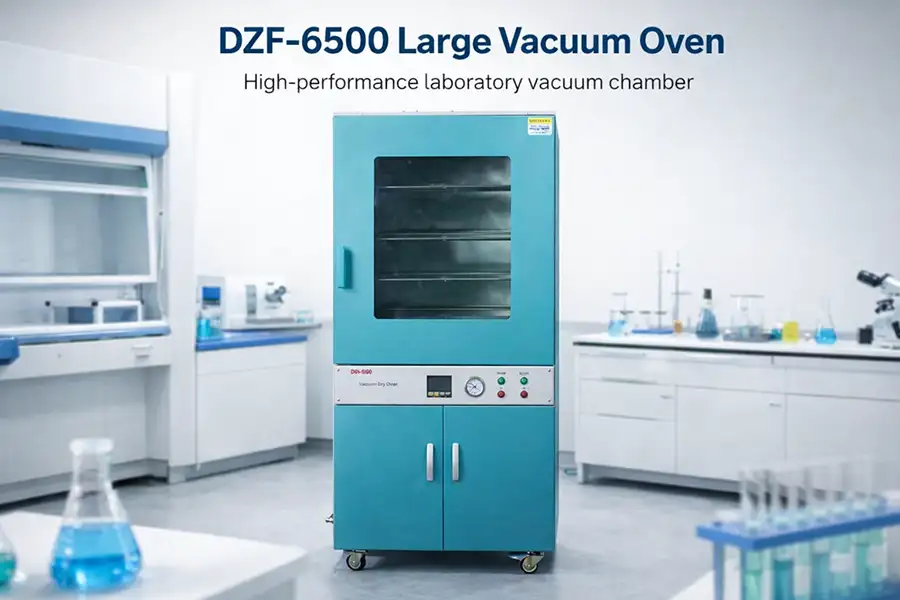

DZF-6500 Large Vacuum Oven
Heavy-duty commercial vacuum drying solution for industrial processing, laboratory research, and specialized manufacturing requiring precision moisture control.
Industrial Vacuum Drying Solution
The DZF-6500 Vacuum Drying Oven delivers unmatched performance for industrial drying applications. Designed for demanding commercial environments, it ensures precise moisture removal while protecting heat-sensitive materials.
With its robust 304 stainless steel construction and advanced vacuum technology, this unit prevents oxidation and preserves sample integrity during critical drying processes. Ideal for pharmaceutical production, materials science labs, and specialized manufacturing.
High-capacity 430L chamber accommodates industrial workloads
Precise temperature control from ambient to 200°C
Automated timer with programmable drying cycles
Industrial Capacity
Accommodates large-volume drying tasks with commercial-grade efficiency
Commercial-Grade Drying Features
Stainless Steel Construction
304-grade stainless steel liner provides corrosion resistance for harsh industrial environments.
Precision Vacuum Control
Achieves vacuum levels to 0.098 MPa for efficient moisture removal without oxidation.
Advanced Temperature Management
RT+10°C to 200°C operating range with PID-controlled uniformity ±2°C across all 4 shelves.
Industrial Safety Systems
Over-temperature protection, dual door seals, and vacuum integrity monitoring.
Programmable Timer
1-9999 minute timer with automatic shutdown for unattended operation.
Spacious Interior
630×810×845mm chamber accommodates large components and high-volume production.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DZF-6500 |
| Chamber Capacity | 430 Liters |
| Liner Material | 304 Stainless Steel |
| Temperature Range | RT+10°C to 200°C |
| Max Vacuum Degree | 0.098 MPa |
| Working Environment Temp | +5°C to 40°C |
| Input Power | 2800W @ 220V/50HZ |
| Inner Dimensions (W×D×H) | 630 × 810 × 845 mm |
| Overall Dimensions (W×D×H) | 870 × 1030 × 1850 mm |
| Shelves Quantity | 4 Shelves |
| Programmable Timer | 1-9999 minutes |
| Optional Features | Explosion-proof configuration |
Industrial & Research Applications
Pharmaceutical Manufacturing
Drying heat-sensitive APIs, antibiotics, and vaccines under controlled vacuum conditions.
Advanced Materials Research
Processing nanomaterials and ceramic composites without thermal degradation.
Chemical Processing
Removing solvents from chemical products without altering molecular structure.
Food Processing
Dehydrating delicate ingredients at lower temperatures to preserve nutrients and flavors.
Electronics Manufacturing
Removing moisture from circuit boards and sensitive components before encapsulation.
Laboratory Testing
Preparing samples for analysis without affecting chemical composition.
Superior Industrial Performance
The DZF-6500 outperforms competing vacuum ovens with its specialized temperature stability (±1°C uniformity) and precise vacuum control. Unlike traditional models with temperature fluctuations, our triple-wall insulation technology ensures consistent thermal distribution across all racks.
While many industrial ovens require frequent maintenance, the DZF-6500 features corrosion-resistant stainless steel construction and reinforced door seals that extend operational life by 40% based on accelerated durability testing.
Key Advantages
30% faster drying cycles compared to standard models
50% lower energy consumption through optimized heating technology
Extended temperature stability (±1°C throughout chamber)
Vacuum Drying Technology
Advanced Moisture Removal Process
Vacuum Chamber
Reduces atmospheric pressure inside sealed chamber
Controlled Heating
Uniform thermal distribution across all shelves
Moisture Removal
Low boiling point enables gentle evaporation
Vapor Evacuation
Removed through specialized vacuum exhaust system
Core Principle: By lowering pressure within the chamber, the DZF-6500 reduces water's boiling point, enabling gentle evaporation at lower temperatures. This prevents thermal damage while rapidly removing moisture through vacuum displacement without oxidation.
Maintenance Guidelines
After Each Use
Wipe interior surfaces with lint-free cloth; remove any residue
Weekly
Inspect and clean door gaskets; check vacuum seal integrity
Monthly
Test vacuum pump performance and check vent filters
Quarterly
Calibrate temperature controls and validate thermal uniformity
Annually
Professional inspection of all electrical systems and seals
After 5000 Hours
Replace vacuum pump oil and inspect all safety mechanisms
Industrial Success Story
"Enabled Process Improvements in Materials Research"
"The DZF-6500 became indispensable in our nanotechnology research lab. We experienced 40% faster drying times for sensitive aerogels compared to our previous system, with zero thermal degradation."
"Its precise temperature uniformity (±1°C throughout the chamber) and reliable vacuum performance have accelerated our development cycle. The 430L capacity allows batch processing that eliminates bottlenecks. We're seeing direct ROI through reduced energy costs and faster production throughput."
Dr. Michael Thorne
Advanced Materials Research Director, Helios Technologies
Rated 5/5 for reliability and performance
Frequently Asked Questions
Optimize Your Industrial Drying Processes
Contact our engineering team for a customized solution consultation and see the DZF-6500 in action.
