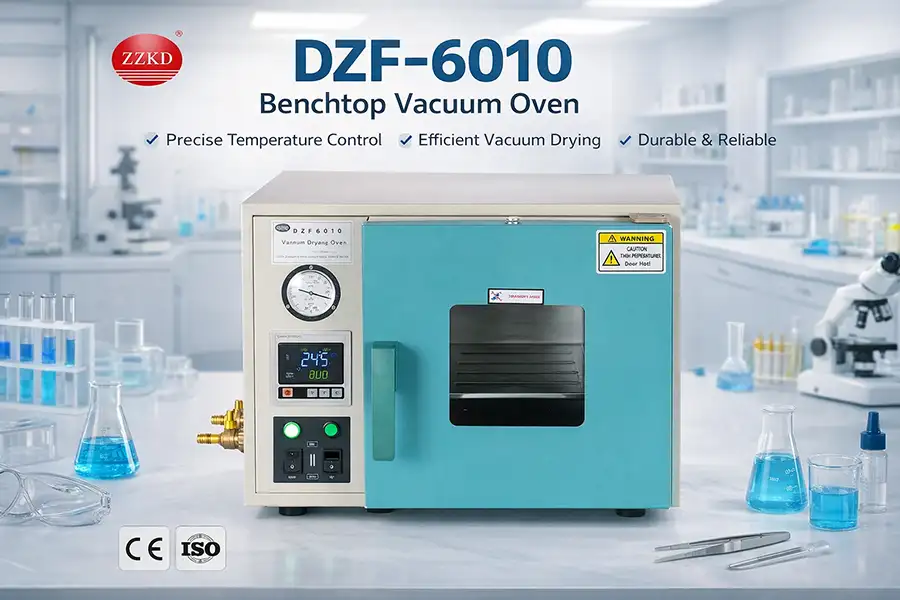

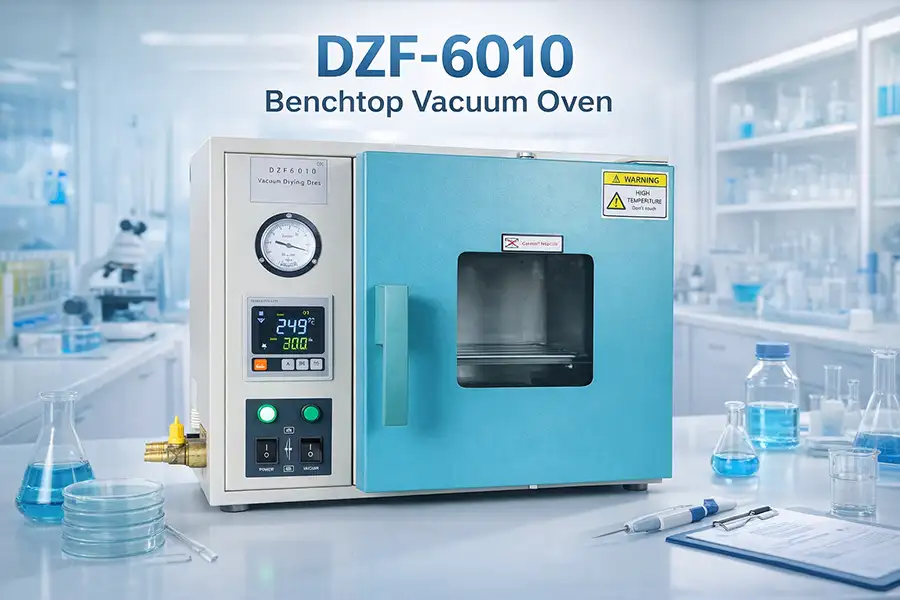

DZF-6010 Benchtop Vacuum Oven
Laboratory-grade vacuum drying with exceptional accuracy. Designed for small-scale applications requiring gentle moisture removal without thermal degradation.
Laboratory Vacuum Drying
The DZF-6010 is a premium benchtop vacuum drying oven engineered for precision moisture removal in laboratory settings. Featuring an 8L chamber with stainless steel construction, it offers professional-grade drying capabilities on your benchtop.
With programmable temperature control and a vacuum environment that lowers boiling points, this system enables sample drying at lower temperatures. Ideal for research labs, educational institutions, and quality control environments requiring gentle dehydration.
Advanced PID temperature control with ±1°C accuracy
Temperature range from ambient to 200°C
Vacuum down to 0.098 MPa for gentle moisture removal
Moisture Removal
Achieve up to 95% moisture reduction while preserving heat-sensitive compounds through vacuum-assisted drying.
Technical Excellence
Precise Temperature Control
Digital PID control with RT+10~200°C range for uniform heating.
Deep Vacuum Performance
Achieves 0.098 MPa vacuum for lower boiling points and gentle drying.
Stainless Steel Chamber
304 stainless steel construction for corrosion resistance and clean operation.
Programmable Timer
1-9999 minute timer with auto-shutoff for unattended operation.
Compact Benchtop Design
Space-efficient 595×420×420mm footprint ideal for labs with bench space constraints.
Removable Shelves
Includes 1 stainless steel shelf with options for custom configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DZF-6010 |
| Chamber Capacity | 8 Liters |
| Liner Material | 304 Stainless Steel |
| Temperature Range | RT+10°C to 200°C |
| Max Vacuum Degree | 0.098 MPa (≈0.97 atm) |
| Power Consumption | 400W |
| Working Temperature | Ambient +5°C to +40°C |
| Inner Dimensions | 200 × 200 × 200 mm (W×D×H) |
| Outer Dimensions | 595 × 420 × 420 mm (W×D×H) |
| Shelves Included | 1 removable shelf |
| Timer Range | 1 to 9999 minutes |
| Power Supply | 220V/50Hz |
| Options | Explosion-proof configuration |
Laboratory Applications
Pharmaceutical Research
Gentle drying of APIs, antibiotics, and bulk drugs without thermal degradation.
Materials Science
Preparation of powders, nanomaterials, and electronic components.
Botanical Processing
Drying of plant extracts while preserving heat-sensitive compounds.
Laboratory Sample Prep
Moisture content testing and preparation of analytical specimens.
Advanced Laboratory Drying
Unlike conventional drying ovens requiring high temperatures, the DZF-6010 achieves efficient moisture removal at significantly lower settings through vacuum pressure application. This preservative method is perfect for temperature-sensitive materials that degrade under standard drying conditions.
Our advanced PID temperature control provides ±1°C uniformity throughout the chamber - a critical factor for reproducibility in research applications. For industrial-scale drying, our 50L models offer expanded capacity with the same precision engineering.
Competitive Advantage
Vacuum drying preserves 30% more volatile compounds
70% faster drying times than conventional convection ovens
Advanced stainless construction reduces cross-contamination risks
Vacuum Drying Technology
Reduced Pressure Moisture Removal
Vacuum Creation
Chamber pressure lowered to 0.098 MPa
Temperature Application
Controlled heating within RT+10~200°C range
Moisture Desorption
Water molecules become volatile at lower temperatures
Vapor Removal
Vacuum system continuously removes liberated moisture
Scientific Principle: Reduced atmospheric pressure significantly lowers moisture boiling points, enabling gentle and accelerated dehydration of temperature-sensitive materials without molecular degradation.
Optimal Maintenance Guidelines
Daily
Wipe chamber interior with alcohol wipes after use
Weekly
Inspect and clean vacuum seals and door gaskets
Monthly
Check vacuum pump oil level and filter condition
Quarterly
Calibrate temperature sensors and vacuum gauge
Annual
Full preventive maintenance with seal replacement
Laboratory Proven Performance
"Revolutionized Our Phytochemical Research"
"The DZF-6010 has been indispensable in our natural products laboratory. We've successfully preserved delicate terpenes and flavonoids that degrade in conventional ovens, with drying times reduced by 65%."
"The combination of precise temperature control and vacuum functionality gives us reproducible results across batches. We've processed over 500 samples with consistent quality. For our pilot plant work, we've standardized on ACS Laboratory's industrial vacuum oven series."
Dr. Michael Reynolds
Research Director, Botanical Innovations Research Centre
Rated 5/5 for reliability and results
Frequently Asked Questions
Optimize Your Research Drying Today
Contact our laboratory specialists to see how the DZF-6010 can improve your sample preparation workflows.
