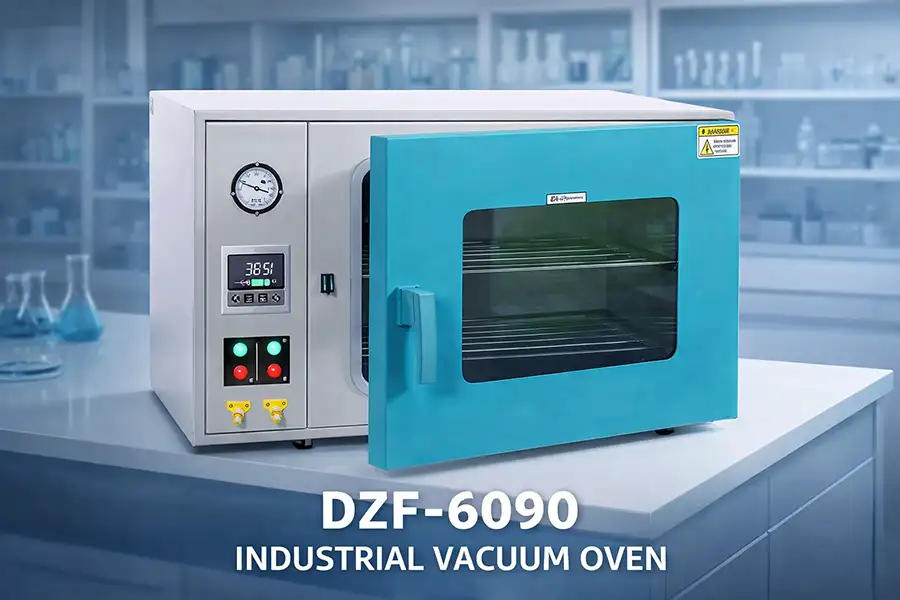

DZF-6090 Industrial Vacuum Oven
Professional-grade vacuum drying solutions for sensitive materials. Engineered for reliability in demanding industrial environments with consistent heat distribution.
Industrial Vacuum Drying System

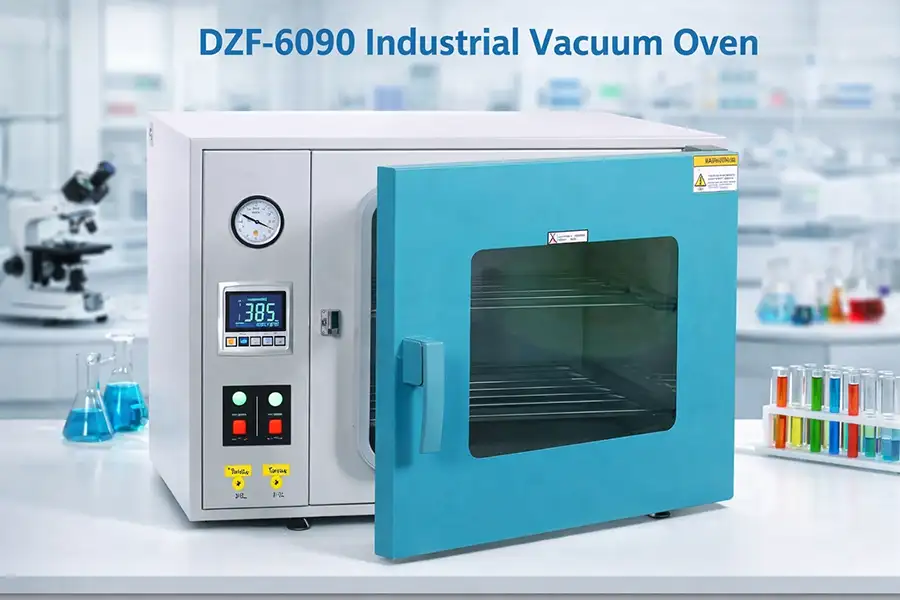

The DZF-6090 Industrial Vacuum Oven is engineered for precise thermal processing of sensitive materials. Its 91-liter capacity makes it ideal for industrial laboratories and quality control facilities.
With advanced multi-layer sealed door construction and stainless steel cavity, this oven ensures consistent thermal performance. Ideal for pharmaceuticals, biotechnology, electronics, and research applications requiring contamination-free drying.
Digital PID control with ±1℃ precision
Safety features include auto pressure balancing
Corrosion-resistant 304 stainless steel construction
Even Heat Distribution
Thermostable multi-layer insulation and optimized airflow ensure uniform temperatures throughout the workspace.
Technical Advantages
Precise Thermal Control
Digital PID temperature regulation from RT+10℃ to 200℃ with ±1℃ stability
Programmable Operation
Set timers from 1 to 9999 minutes for fully automated drying cycles
Deep Vacuum Capability
Achieve vacuum degree of 0.098Mpa (
Durable Construction
304 stainless steel chamber resists corrosion and ensures contamination-free processing
Safety Monitoring
Multiple safety features including over-temperature protection and pressure release valves
Adjustable Shelving
Two adjustable stainless steel shelves accommodate various product configurations
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DZF-6090 |
| Chamber Capacity | 91 Liters |
| Inner Dimensions | 450 × 450 × 450 mm (W×D×H) |
| Temperature Range | RT+10~200°C |
| Max. Vacuum Degree | 0.098 Mpa ( |
| Timer Range | 1~9999 minutes |
| Input Power | 2400W |
| External Dimensions | 770 × 630 × 700 mm (W×D×H) |
| Liner Material | 304 Stainless Steel |
| Shelves | 2 Adjustable Shelves |
| Working Temperature | +5~40°C |
| Power Supply | 220V/50HZ |
Industry Applications
Pharmaceutical Manufacturing
Drying active pharmaceutical ingredients and chemical precursors without oxidation damage
Electronics Production
Moisture removal from electronic components and PCBs prior to hermetic sealing
Industrial Chemistry
Processing moisture-sensitive catalysts and specialty chemical products
Biotechnology
Gentle dehydration of biological samples, enzymes, and microbial cultures
Why Choose the DZF-6090?
Unlike comparable vacuum drying systems, the DZF-6090 features stainless steel heaters integrated with the chamber walls rather than separate heating elements. This design ensures superior thermal uniformity throughout the workspace, reducing drying times by up to 40% compared to traditional models.
The reinforced multi-layer door gasket system maintains perfect vacuum integrity even under continuous industrial usage cycles. With our optional enterprise data logging, compliance documentation is automatically generated for regulated environments.
Competitive Advantages
93% more energy efficient than convection ovens
Near-silent operation at 45dB
ISO 9001 certified manufacturing processes
Vacuum Drying Technology
Moisture Removal at Reduced Temperatures
Vacuum Generation
Chamber pressure reduced to
Temperature Ramp
Precise heating to setpoint (RT+10~200°C)
Moisture Evaporation
Reduced boiling points enable low-temp drying
Vapor Evacuation
Moisture vapor removed through vacuum pump
Core Principle: By reducing chamber pressure below the vapor pressure of water (
Operational Maintenance Guidelines
After Each Use
Wipe chamber interior with alcohol solution
Weekly
Inspect door seals and vacuum fittings
Monthly
Clean air intake filters and lubricate moving parts
Quarterly
Replace vacuum pump oil and inspect heating elements
Annual
Factory-certified calibration and safety inspection
Industry Validation
"Revolutionized Our Production Process"
"Implementing the DZF-6090 has transformed our pharmaceutical drying operations. We've reduced batch drying times by 55% while maintaining strict temperature-sensitive compound integrity that was impossible with our previous convection ovens."
"The stainless steel chamber prevents cross-contamination between batches, fulfilling our GMP requirements. Post-drying moisture analysis shows an impressive 99.3% repeatability. We've subsequently upgraded all our drying stations with this model across three facilities."
Dr. Michael Chen
Production Director, Vertex Pharmaceuticals
Verified industrial purchaser
Frequently Asked Questions
Transform Your Drying Processes Today
Contact our engineering team to discuss how the DZF-6090 can optimize your material processing.
