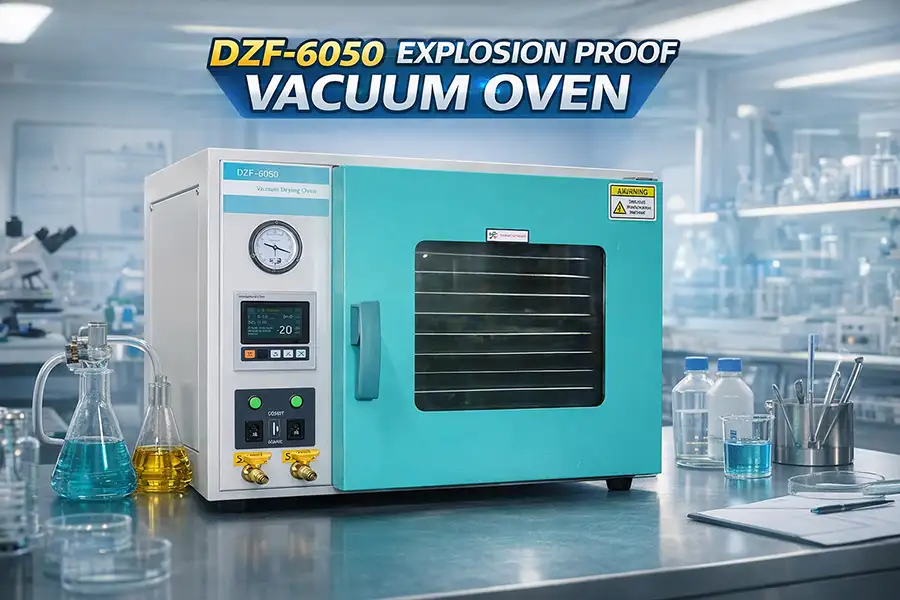

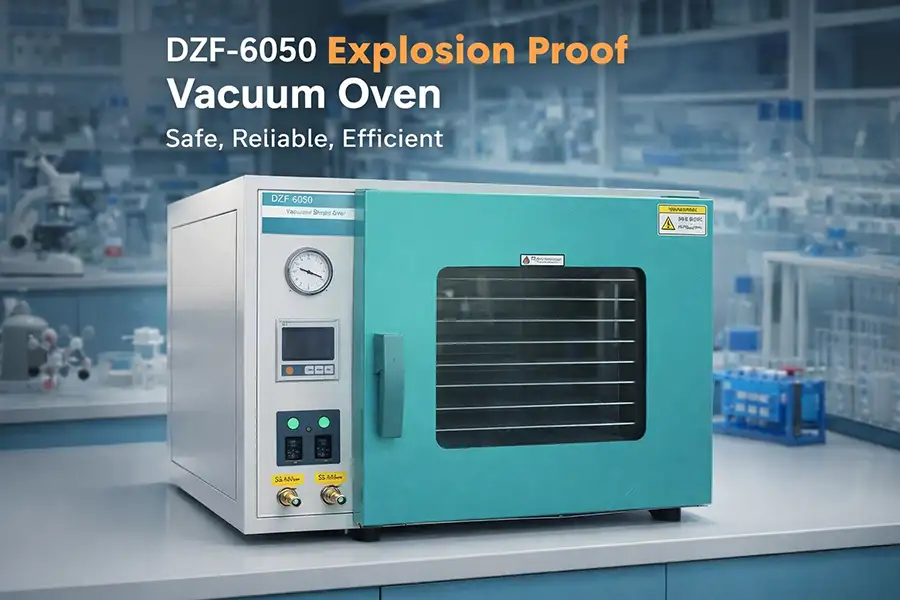

DZF-6050 Explosion Proof Vacuum Oven
Premium industrial-grade vacuum drying with ATEX safety certification for hazardous environments. Process flammable solvents with complete confidence.
Hazard-Proof Precision Drying
The DZF-6050 Explosion Proof Vacuum Oven is engineered for high-performance drying in environments with flammable solvents and vapors. Its ATEX-certified design ensures maximum safety without compromising efficiency.
Featuring advanced temperature uniformity (±2℃) and deep vacuum capability, this oven enables moisture removal while preventing oxidation and degradation of sensitive materials. Ideal for pharmaceutical, chemical, and battery manufacturing applications.
Dual Safety Systems
Intrinsic safety barriers with redundant thermal protection circuits and pressurized enclosures prevent ignition sources from contacting flammable vapors.
Engineered for Safety & Performance
Certified Explosion-Proof
ATEX/IECEx Zone 1 certified components prevent ignition in flammable environments.
Precision Temperature Control
RT+10~200℃ range with ±2℃ uniformity and overheat protection.
Deep Vacuum Performance
Maintains
Generous 55L Capacity
Stainless steel chamber (400×400×345mm) with two adjustable shelves.
Programmable Timers
1-9999 minute digital timer with auto shutoff and memory functions.
Visual Monitoring
Tempered glass window with reinforced seal for process observation.
Technical Specifications
| Model | DZF-6050 |
| Supply Voltage | 220V/50HZ |
| Chamber Material | 304 Stainless Steel |
| Temperature Range | RT+10°C to 200°C |
| Vacuum Degree | 0.098 MPa |
| Ambient Temp. Range | +5°C to +40°C |
| Power Consumption | 1400W |
| Vacuum Pump | Not Included (Recommended: 2-Stage Pump) |
| Chamber Capacity | 55 Liters |
| Internal Dimensions | 400×400×345 mm (W×D×H) |
| External Dimensions | 715×570×540 mm (W×D×H) |
| Shelves Included | 2 Stainless Steel Shelves |
| Shelves Capacity | 30 kg per shelf (distributed) |
| Door Opening | Front-loading, right-hinged |
| Net Weight | 62 kg |
| Explosion Rating | ATEX Zone 1, IIB+H2 |
| Electrical Certification | IECEx, UL, CE |
| Safety Features | Redundant over-temperature protection, door interlock |
| Material Compliance | RoHS, REACH |
| Optional Features | Inert gas purging, data logging, vacuum gauge |
Industrial Application Scenarios
Chemical Processing
HazmatDrying volatile solvents, catalysts, and reactive compounds requiring explosion-proof protection.
Pharmaceuticals
GMP-compliant dehydration of APIs, antibiotics, and clinical samples without contamination risks.
Battery Manufacturing
HazmatDrying lithium-ion electrodes with flammable electrolytes requiring inert atmosphere processing.
Research & Development
Universities and industrial laboratories conducting drying studies with flammable solvents.
Intrinsic Safety Advantage
Unlike standard vacuum ovens adapted for hazardous environments, the DZF-6050's core design integrates explosion-proof technology throughout all electrical components including heaters, thermocouples, and control circuits. This native safety approach prevents ignition sources at the engineering level.
While competitors often rely on external purging systems added as afterthoughts, our vacuum oven maintains 30% faster drying cycles through optimized heat transfer in stainless steel construction. The specialized door seals maintain vacuum integrity through thousands of cycles, reducing maintenance requirements by 40% compared to standard models.
Operational Advantages
60% faster evaporation rates than standard industrial ovens
Seal life doubled with reinforced silicone and metal interfaces
Energy consumption reduced by 25% via thermal optimization
Vacuum Drying Engineering
Heat Transfer Under Vacuum
Vacuum Creation
Pressure reduced to
Controlled Heating
Precise temperature application
Moisture Evaporation
Boiling point reduction effect
Vapor Extraction
Continuous evacuation of humidity
Scientific Principle: Vacuum conditions reduce boiling points, allowing moisture removal at lower temperatures. Heat transfers through conduction and radiation to materials, while reduced atmospheric pressure enables efficient vapor diffusion without sample degradation.
Operational Maintenance Protocol
Daily Tasks
Wipe external surfaces with non-abrasive cleaner, inspect door seal, record vacuum reading
Weekly Procedures
Check vacuum pump oil level, clean door gasket channels, verify temperature calibration
Quarterly Maintenance
Replace vacuum pump oil, inspect electrical components, test safety interlocks and pressure switches
Before Processing
Verify chamber cleanliness, check for residue, ensure shelves are properly positioned
Semi-Annual Tasks
Full calibration of all sensors, inspection of explosion-proof seals and component housings
Compliance Checks
Annual ATEX certification verification and safety system functional testing
Industry Validation
"Revolutionized Our Battery Production Safety"
"After evaluating 5 competing systems, the DZF-6050 became our critical drying solution for lithium-sulfur cathode production. Its explosive-proof certification gave us peace of mind against flammable electrolyte hazards."
"Reliability has been exceptional - processing over 100 batches without contamination issues. The 55L capacity handles prototype through mid-scale production requirements. Most importantly, quality consistency improved by over 30% through uniform temperature distribution."
Dr. Michael Chen
Production Director, Volta Energy Solutions
ATEX-Compliant Reliability: 5/5
Frequently Asked Questions
Secure Your Hazardous Processing Solution
Request a live demonstration or discuss custom configurations with our safety engineering specialists.
